Teams SIP Gateway

Connect SIP Phones to MS Teams - natively

Posted by: Henning // 7th Dec 2021 // Category: //

Since the beginning of MS Teams Phone System one of the most asked qustions is

Can we connect our SIP Phones?

Our default answer to this question is

Yes - but: only on SBC level. Not native in MS Teams.

But December 6th was the day, that changed this answer. Finally the SIP Gateway that was announced by Micorosft nearly a year ago was released.

Currently, SIP Gateway supports the following core Teams calling functionality

  • Inbound and outbound calls
  • Call transfer
  • Meeting dial-in and dial-out
  • Device-based “do not disturb”
  • Voicemail with message waiting indicator

How does it work?

Microsoft provides a SIP Registrar that can be used to onboard specific SIP Phones. Either for personal use (user assigned phones) or as common area phones.

The supported device models are

  • Cisco Phones using MPP firmware (6821, 7800, 8800 series)
  • Polycom (VVX series 100, 200, 300, 400, 500, 600, ...)
  • Yealink (T20, T30, T40, T50 series)
  • AudioCodes 400 HD series

Since Microsoft only allows provisioning for deploying new devices, only these are supported.

Step by Step guide

Prepare MS Teams

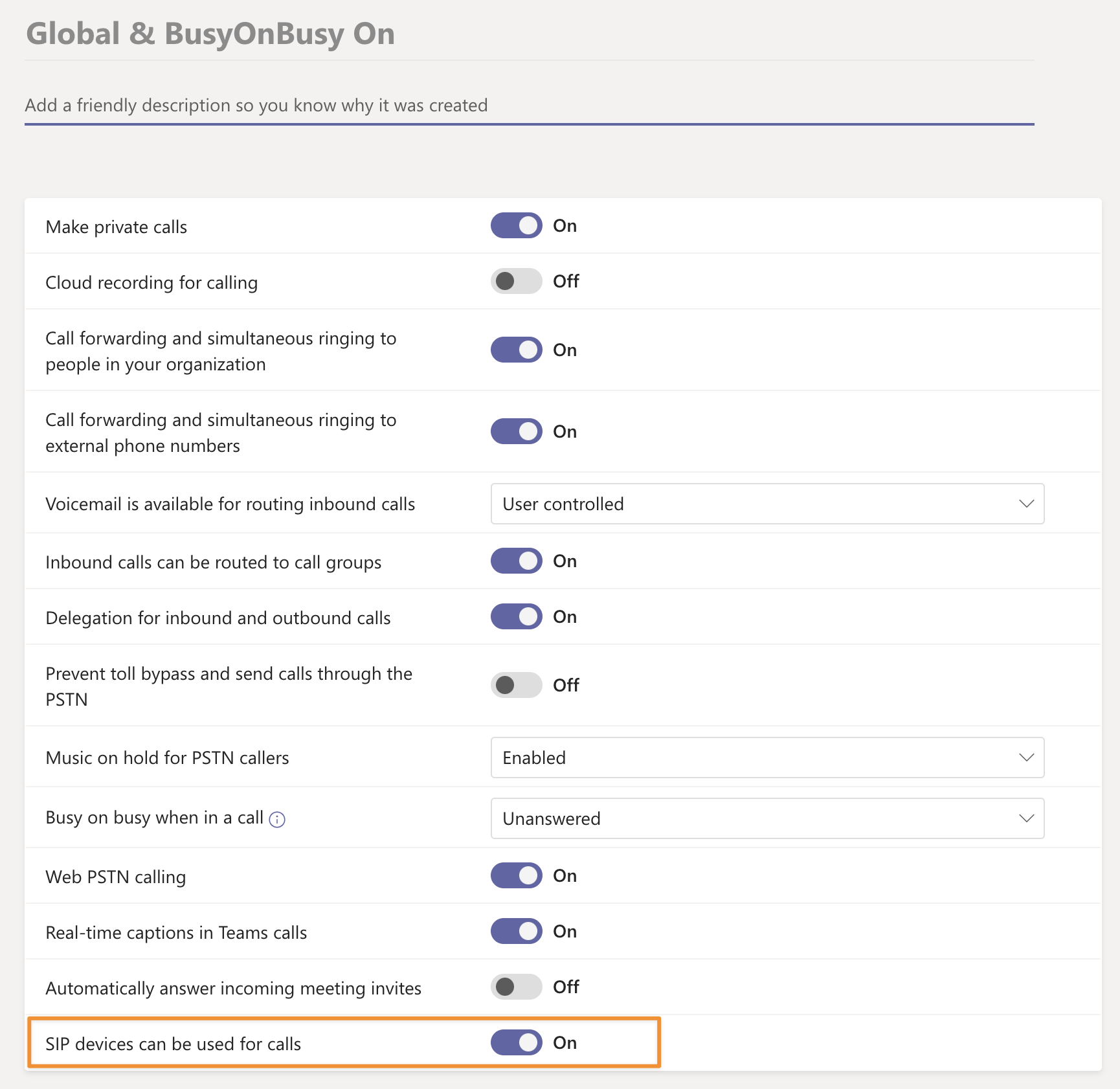

To allow SIP Devices, they need to be enabled in the Calling Policy:

Add the Phone to MS Teams

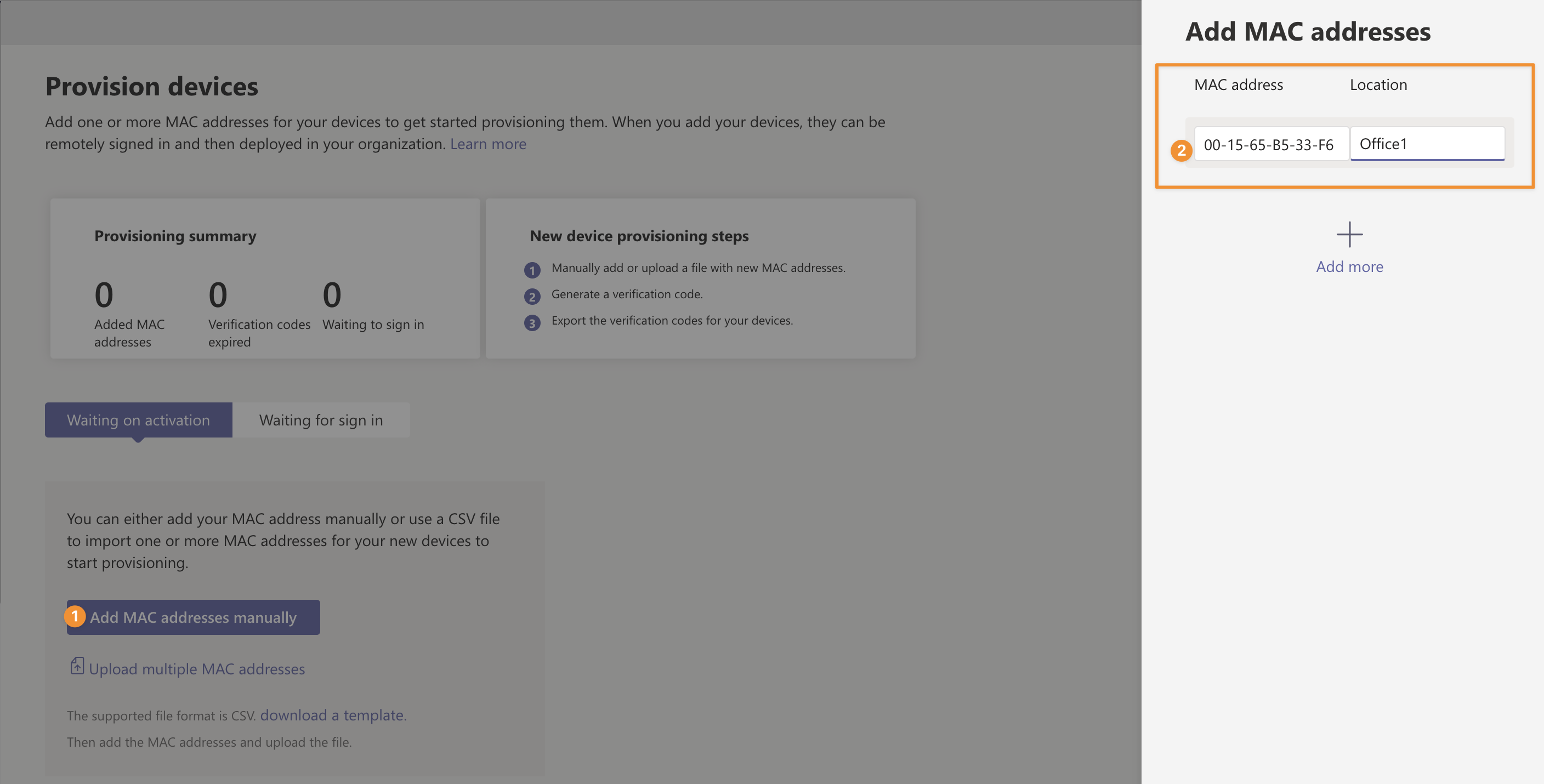

Than head to Teams devices -> SIP devices On the right select Actions -> Provision devices

Enter the MAC-Address of the device and hit Apply.

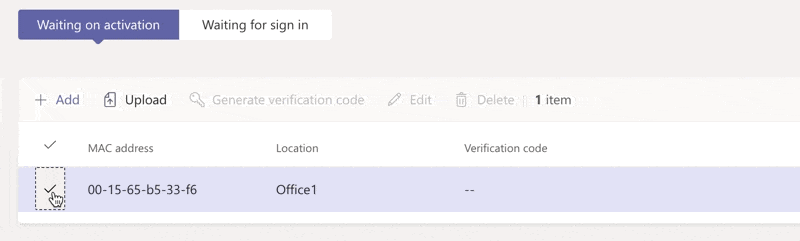

Now select the device and click Generate verification code

Let's move to the phone...

Prepare the phone

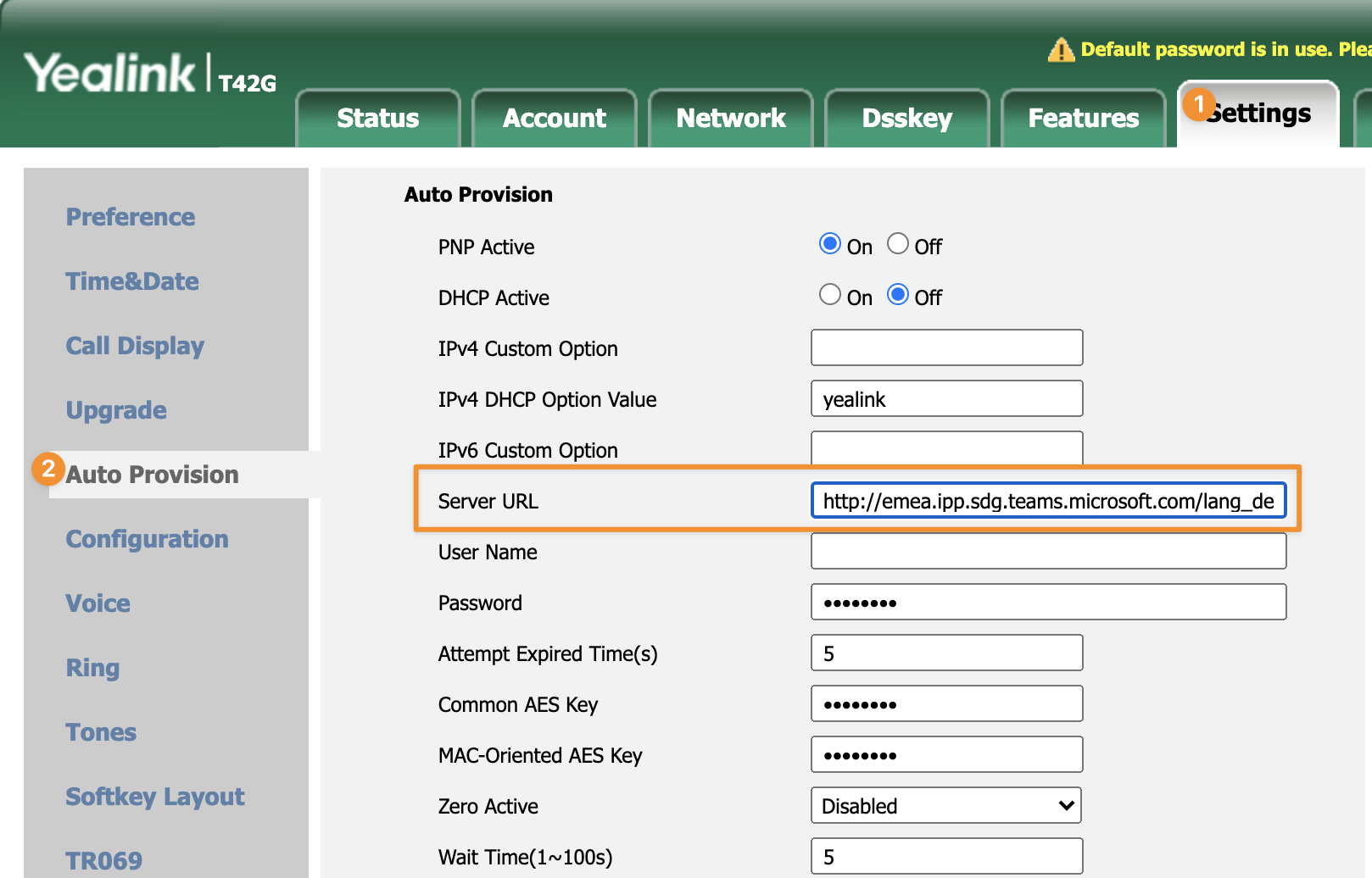

First we need to factory reset our device. Than connect to the Web-UI of the device and set the provisioning url

Provisioning URLs:

  • EMEA: http://emea.ipp.sdg.teams.microsoft.com
  • Americas: http://noam.ipp.sdg.teams.microsoft.com
  • APAC: http://apac.ipp.sdg.teams.microsoft.com

You can also pass in the language like so:

  • http://emea.ipp.sdg.teams.microsoft.com/lang_de

Phone Config

After the phone restarts, it will be registered to the Teams SIP Service, but not assigned to your tenant.

Now it needs to be registered.

Register the phone

Dial *55*504272 on the phone and wait for confirmation. Now the phone is registered in your tenant.

Now you see a "sign in" button on the phone:

Hit button and follow the instructions on you computer. After a few seconds the phone will be assigned to your account.

Overview in the TAC

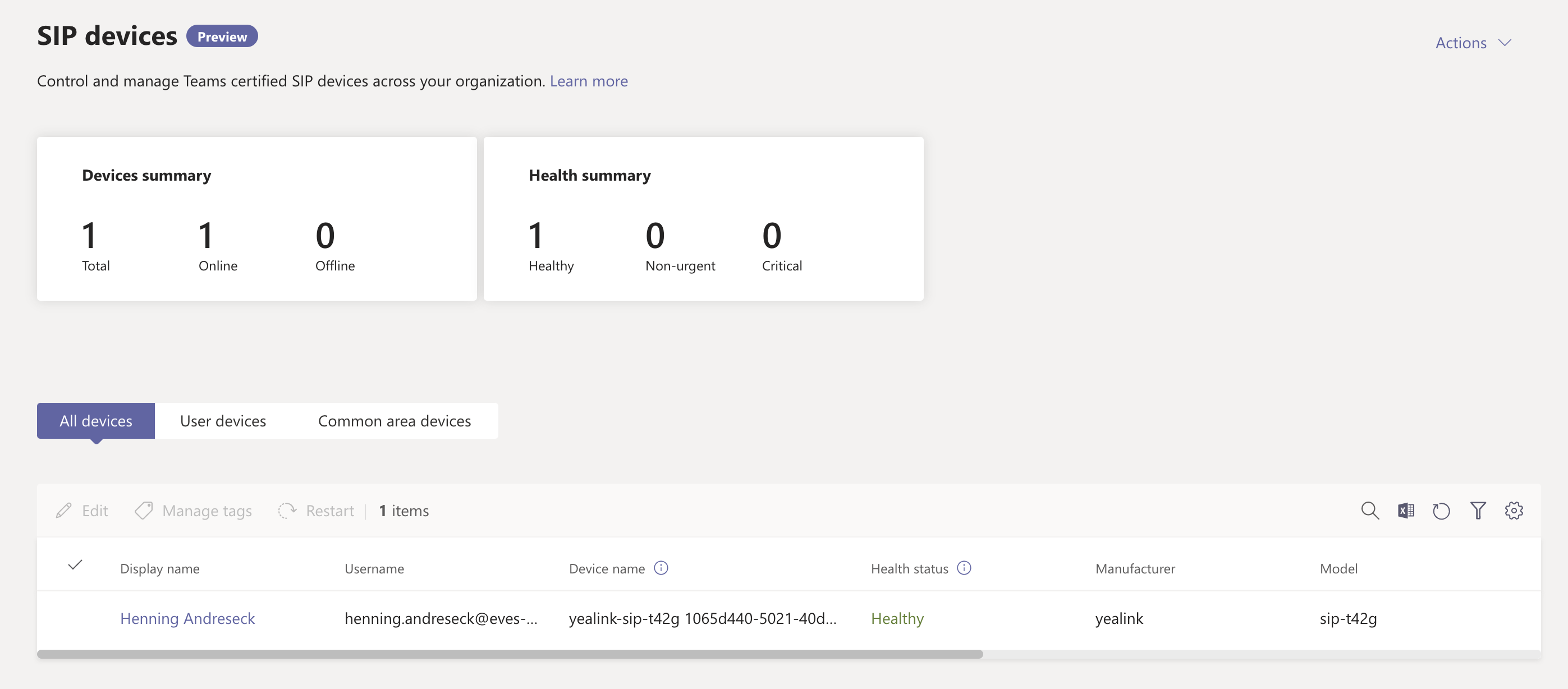

In the Teams devices -> SIP devices view, you can now see the new phone with the assigned user:

Finished

Now you can use the SIP Phone as normal desk phone. You can take & make calls, forward calls etc. However I was not able to take calls to Call Queues. The call was ringing on the phone, but I was not able to answer it.

Please note, that it took nearly 12 hours for my device to be able to sign in, after I changed my calling policy. If you have any issues, give it some time to replicate the policies.

Links

Please check the links below for more information. Check your Firewall and also your Conditional Access configuration if you have any issues.

https://techcommunity.microsoft.com/t5/microsoft-teams-blog/enable-core-microsoft-teams-calling-functionality-on-compatible/ba-p/3030196

https://docs.microsoft.com/en-us/microsoftteams/sip-gateway-configure

https://docs.microsoft.com/en-us/microsoftteams/sip-gateway-plan
